Connect Your IoT Devices to Arc Without Middleware — Native MQTT Ingestion

Every IoT project I've seen starts the same way. Sensors publish to an MQTT broker. Then someone builds a bridge—a Python script, a Node-RED flow, a Telegraf instance, a custom microservice—to pull messages off the broker and push them into a database. That bridge becomes the weakest link. It crashes, it falls behind, it needs babysitting.

We got tired of watching it. So we built MQTT directly into Arc.

No middleware. No bridge. Arc connects to your MQTT broker as a client, subscribes to topics, and writes data straight into Parquet storage. You manage subscriptions through a REST API—create, start, stop, update, delete—at runtime, without restarting anything. And because Arc auto-detects JSON and MessagePack payloads, your devices don't need to change how they publish.

This tutorial walks through the whole setup: run a broker, enable MQTT in Arc, create subscriptions, publish sensor data, and query it with SQL. Twenty minutes from zero to working.

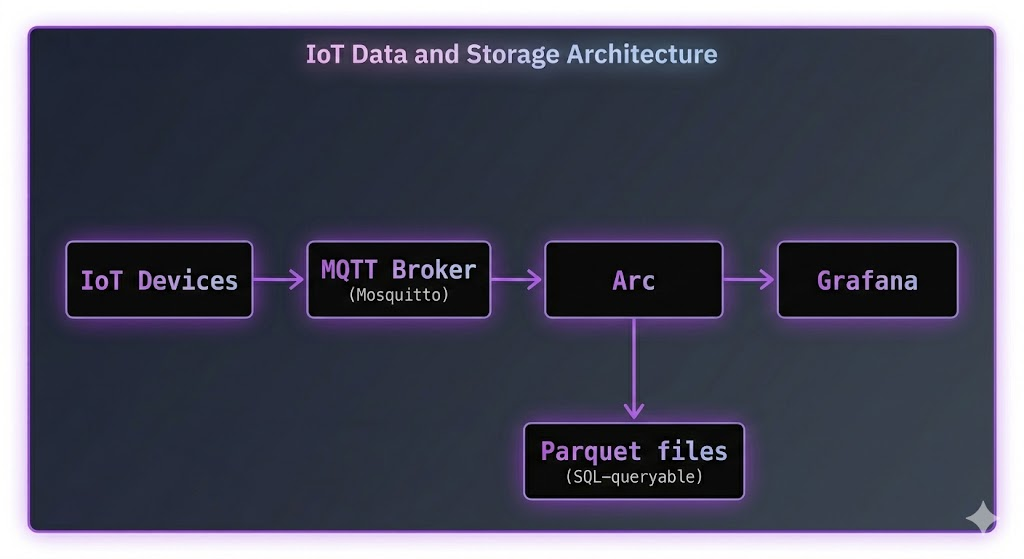

The Architecture

The flow is simple:

IoT MQTT to Arc architecture

No Telegraf. No custom code. Arc subscribes to the broker like any other MQTT client, decodes the messages, and stores them.

Key things to know:

Arc uses the https://github.com/eclipse/paho.mqtt.golang MQTT client—works with any MQTT 3.1.1 broker (Mosquitto, EMQX, HiveMQ, VerneMQ, AWS IoT Core, Azure IoT Hub)
Subscriptions are managed via REST API and persisted in SQLite—they survive restarts
Auto-detects JSON and MessagePack message formats
Supports QoS 0, 1, and 2
TLS/SSL with client certificates for production
Passwords encrypted at rest with AES-256-GCM

Prerequisites

Arc running (v26.02.1 or higher)
An MQTT broker (we'll use Mosquitto in this tutorial)
curl for API calls
mosquitto_pub for sending test messages (comes with Mosquitto)

Step 1: Run the Stack with Docker Compose

The fastest way to get everything running. Create a docker-compose.yml:

version: '3.8'
services:
  arc:
    image: ghcr.io/basekick-labs/arc:latest
    ports:
      - "8000:8000"
    volumes:
      - arc-data:/data
    environment:
      ARC_MQTT_ENABLED: "true"
      ARC_AUTH_ENABLED: "true"
      ARC_ENCRYPTION_KEY: "${ARC_ENCRYPTION_KEY}"
    depends_on:
      - mosquitto

  mosquitto:
    image: eclipse-mosquitto:2
    ports:
      - "1883:1883"
    volumes:
      - ./mosquitto.conf:/mosquitto/config/mosquitto.conf

volumes:
  arc-data:

Create mosquitto.conf:

listener 1883
allow_anonymous true

Generate an encryption key (needed if your MQTT subscriptions use passwords—good practice to set it regardless):

export ARC_ENCRYPTION_KEY=$(openssl rand -base64 32)

Start everything:

docker compose up -d

Grab the Arc admin token:

docker logs arc 2>&1 | grep "Initial admin"

Save it:

export ARC_TOKEN="arc_xxxxxxxxxxxxxxxxxxxxxxxxxxxxx"

Step 2: Create an MQTT Subscription

This is the API call that tells Arc to connect to your broker and start listening. One curl command:

curl -X POST http://localhost:8000/api/v1/mqtt/subscriptions \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $ARC_TOKEN" \
  -d '{
    "name": "factory-sensors",
    "broker": "tcp://mosquitto:1883",
    "topics": ["sensors/#"],
    "database": "iot",
    "qos": 1,
    "auto_start": true
  }'

That's it. Arc connects to the broker, subscribes to sensors/# (all topics under sensors/), and starts writing to the iot database. The auto_start: true means it will reconnect automatically after restarts.

You'll get back something like:

{
  "id": "sub_abc123",
  "name": "factory-sensors",
  "broker": "tcp://mosquitto:1883",
  "topics": ["sensors/#"],
  "database": "iot",
  "qos": 1,
  "status": "running",
  "auto_start": true,
  "created_at": "2026-03-12T10:00:00Z"
}

What each field does:

Field	What it means
`name`	Human-readable label—must be unique
`broker`	MQTT broker URL. Supports `tcp://`, `ssl://`, `ws://`, `wss://`
`topics`	Array of topic patterns. `+` for single-level wildcard, `#` for multi-level
`database`	Target Arc database—created automatically if it doesn't exist
`qos`	0 = fire-and-forget, 1 = at-least-once (recommended), 2 = exactly-once
`auto_start`	Reconnect on Arc restart

Step 3: Publish Some Sensor Data

Now send data to the broker. Your devices would do this, but let's simulate it with mosquitto_pub:

# Temperature reading
mosquitto_pub -h localhost -t "sensors/temperature" \
  -m '{"value": 23.5, "device_id": "sensor-001", "location": "warehouse-a"}'

# Humidity reading
mosquitto_pub -h localhost -t "sensors/humidity" \
  -m '{"value": 65.2, "device_id": "sensor-001", "location": "warehouse-a"}'

# Pressure reading
mosquitto_pub -h localhost -t "sensors/pressure" \
  -m '{"value": 1013.25, "device_id": "sensor-002", "location": "warehouse-b"}'

Notice: no time field in the payloads. Arc uses the current UTC time when the message arrives. If your devices include a timestamp field (time, timestamp, or t), Arc uses that instead—and auto-detects whether it's seconds, milliseconds, microseconds, or nanoseconds.

How topics become measurements: By default, the last segment of the topic becomes the measurement name in Arc. sensors/temperature → table temperature. sensors/humidity → table humidity. Simple.

Step 4: Query with SQL

Let's see the data:

# What tables were created?
curl -s -X POST http://localhost:8000/api/v1/query \
  -H "Authorization: Bearer $ARC_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"sql": "SHOW TABLES FROM iot"}'

You should see:

{
  "columns": ["name"],
  "data": [["temperature"], ["humidity"], ["pressure"]]
}

Now query the temperature readings:

curl -s -X POST http://localhost:8000/api/v1/query \
  -H "Authorization: Bearer $ARC_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "sql": "SELECT * FROM iot.temperature ORDER BY time DESC LIMIT 10"
  }'

Time-bucketed aggregation:

SELECT
  time_bucket(INTERVAL '5 minutes', time) as bucket,
  device_id,
  AVG(value) as avg_temp,
  MIN(value) as min_temp,
  MAX(value) as max_temp
FROM iot.temperature
WHERE time > NOW() - INTERVAL '1 hour'
GROUP BY bucket, device_id
ORDER BY bucket DESC

Cross-measurement join—correlate temperature with humidity from the same sensor:

SELECT
  t.time,
  t.device_id,
  t.value as temperature,
  h.value as humidity
FROM iot.temperature t
JOIN iot.humidity h
  ON t.time = h.time
  AND t.device_id = h.device_id
WHERE t.time > NOW() - INTERVAL '1 hour'
ORDER BY t.time DESC

Standard SQL. No proprietary query language. No special IoT syntax. Just SQL.

Topic Mapping: Extract Tags from Topic Paths

The default behavior—last topic segment becomes the measurement—works for simple setups. But IoT topic hierarchies often encode metadata in the path:

factory/line-1/machine-007/metrics
factory/line-2/machine-012/metrics

You want line and machine_id as tags in Arc, not lost in the topic string. Topic mapping handles this:

curl -X POST http://localhost:8000/api/v1/mqtt/subscriptions \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $ARC_TOKEN" \
  -d '{
    "name": "factory-floor",
    "broker": "tcp://mosquitto:1883",
    "topics": ["factory/+/+/metrics"],
    "database": "manufacturing",
    "qos": 2,
    "topic_mapping": {
      "factory/+/+/metrics": {
        "measurement": "machine_metrics",
        "tags_from_topic": [
          {"position": 1, "tag_name": "line"},
          {"position": 2, "tag_name": "machine_id"}
        ]
      }
    }
  }'

A message published to factory/line-1/machine-007/metrics with payload {"rpm": 3200, "temperature": 85.3} gets stored as:

Database: manufacturing
Measurement: machine_metrics
Tags: line=line-1, machine_id=machine-007
Fields: rpm=3200, temperature=85.3

Now you can query by line or machine without parsing topic strings:

SELECT
  time_bucket(INTERVAL '5 minutes', time) as bucket,
  line,
  machine_id,
  AVG(rpm) as avg_rpm,
  MAX(temperature) as max_temp
FROM manufacturing.machine_metrics
WHERE time > NOW() - INTERVAL '1 hour'
  AND line = 'line-1'
GROUP BY bucket, line, machine_id
ORDER BY bucket DESC

Managing Subscriptions at Runtime

Everything is API-driven. No config files to edit, no restarts needed.

List all subscriptions

curl -s http://localhost:8000/api/v1/mqtt/subscriptions \
  -H "Authorization: Bearer $ARC_TOKEN" | python3 -m json.tool

Stop a subscription

curl -X POST http://localhost:8000/api/v1/mqtt/subscriptions/{id}/stop \
  -H "Authorization: Bearer $ARC_TOKEN"

Update (must be stopped first)

curl -X PUT http://localhost:8000/api/v1/mqtt/subscriptions/{id} \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $ARC_TOKEN" \
  -d '{
    "topics": ["sensors/#", "alerts/#"],
    "qos": 2
  }'

Restart

curl -X POST http://localhost:8000/api/v1/mqtt/subscriptions/{id}/restart \
  -H "Authorization: Bearer $ARC_TOKEN"

Delete

curl -X DELETE http://localhost:8000/api/v1/mqtt/subscriptions/{id} \
  -H "Authorization: Bearer $ARC_TOKEN"

Monitoring

Subscription stats

curl -s http://localhost:8000/api/v1/mqtt/subscriptions/{id}/stats \
  -H "Authorization: Bearer $ARC_TOKEN"

Returns:

{
  "messages_received": 15420,
  "bytes_received": 2458320,
  "decode_errors": 0,
  "last_message_at": "2026-03-12T10:30:15Z",
  "topics": {
    "sensors/temperature": 8500,
    "sensors/humidity": 6920
  }
}

Health check (no auth required)

curl -s http://localhost:8000/api/v1/mqtt/health

{
  "status": "healthy",
  "healthy": true,
  "running_count": 2,
  "connected_count": 2,
  "disconnected_count": 0
}

Prometheus metrics

Arc exposes MQTT metrics at its Prometheus endpoint:

Metric	Description
`arc_mqtt_messages_received_total`	Total messages received
`arc_mqtt_bytes_received_total`	Total bytes received
`arc_mqtt_decode_errors_total`	Failed decodes
`arc_mqtt_connected`	Connection status (1/0)
`arc_mqtt_reconnects_total`	Reconnection attempts

Set up Grafana alerts on arc_mqtt_connected == 0 to catch disconnections.

Multiple Brokers

One Arc instance can connect to as many brokers as you need. Different environments, different vendors, different facilities:

# Production broker with TLS
curl -X POST http://localhost:8000/api/v1/mqtt/subscriptions \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $ARC_TOKEN" \
  -d '{
    "name": "production-sensors",
    "broker": "ssl://prod-mqtt.example.com:8883",
    "topics": ["prod/#"],
    "database": "production",
    "tls_enabled": true,
    "tls_ca_path": "/etc/arc/certs/ca.crt",
    "username": "arc_prod",
    "password": "your-secure-password"
  }'

# Development broker — no auth, no TLS
curl -X POST http://localhost:8000/api/v1/mqtt/subscriptions \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $ARC_TOKEN" \
  -d '{
    "name": "dev-sensors",
    "broker": "tcp://dev-mqtt.example.com:1883",
    "topics": ["dev/#"],
    "database": "development"
  }'

Each subscription is independent—its own connection, its own reconnect logic, its own database. One broker going down doesn't affect the others.

TLS and Authentication

For production, you'll want TLS and proper credentials.

Server certificate verification

curl -X POST http://localhost:8000/api/v1/mqtt/subscriptions \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $ARC_TOKEN" \
  -d '{
    "name": "secure-broker",
    "broker": "ssl://broker.example.com:8883",
    "topics": ["secure/#"],
    "database": "production",
    "tls_enabled": true,
    "tls_ca_path": "/etc/arc/certs/ca.crt"
  }'

Mutual TLS (client certificates)

curl -X POST http://localhost:8000/api/v1/mqtt/subscriptions \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $ARC_TOKEN" \
  -d '{
    "name": "mtls-broker",
    "broker": "ssl://broker.example.com:8883",
    "topics": ["secure/#"],
    "database": "production",
    "tls_enabled": true,
    "tls_cert_path": "/etc/arc/certs/client.crt",
    "tls_key_path": "/etc/arc/certs/client.key",
    "tls_ca_path": "/etc/arc/certs/ca.crt"
  }'

Password encryption

Passwords are encrypted at rest using AES-256-GCM. You set the encryption key once:

# Generate a key
openssl rand -base64 32

# Set it before starting Arc
export ARC_ENCRYPTION_KEY="your-base64-encoded-32-byte-key"

Subscriptions without passwords work fine without the key.

Message Formats

Arc auto-detects the format. Your devices don't need to change anything.

JSON (single record)

{"time": 1706745600000000, "temperature": 23.5, "humidity": 65.2, "device_id": "sensor-001"}

JSON (batch)

[
  {"time": 1706745600000000, "temperature": 23.5},
  {"time": 1706745601000000, "temperature": 23.6},
  {"time": 1706745602000000, "temperature": 23.4}
]

MessagePack

Same structures as JSON but MessagePack-encoded. Detected automatically via magic bytes. Use this for higher throughput—~6M records/sec with the columnar format.

Timestamp handling

If time, timestamp, or t field is present: auto-detects precision (seconds, milliseconds, microseconds, nanoseconds) based on magnitude
If no timestamp field: current UTC time is used

Troubleshooting

Subscription stuck in "error" status?

curl -s http://localhost:8000/api/v1/mqtt/subscriptions/{id} \
  -H "Authorization: Bearer $ARC_TOKEN" | python3 -m json.tool

Check the error_message field. Common causes:

Broker URL wrong (missing tcp:// prefix)
Broker unreachable from Arc's network
Another client using the same client_id
Bad credentials

Messages received but no data in queries?

Check decode errors in stats:

curl -s http://localhost:8000/api/v1/mqtt/subscriptions/{id}/stats \
  -H "Authorization: Bearer $ARC_TOKEN" | python3 -m json.tool

If decode_errors is climbing, your messages aren't valid JSON or MessagePack. Test with a simple payload first:

mosquitto_pub -h localhost -t "test/data" -m '{"value": 42}'

Subscription won't start after restart?

Make sure auto_start is true on the subscription and ARC_MQTT_ENABLED=true in your environment.

Conclusion

No Telegraf. No Node-RED. No custom bridge scripts. Arc connects directly to your MQTT broker, decodes the messages, and stores them in Parquet.

Create a subscription: one API call
Manage at runtime: start, stop, update, delete—no restarts
Multiple brokers: connect to as many as you need
Topic mapping: extract tags from topic hierarchies
Query with SQL: standard DuckDB SQL, joins, aggregations, window functions
Monitor everything: per-subscription stats, health checks, Prometheus metrics

If you're running Telegraf today purely as an MQTT bridge to Arc, you can remove it. If you're running Node-RED or a custom script, you can definitely remove it.

Resources:

Questions? Reach out on Twitter or join our Discord.

Analytical Database

Streaming

AI Memory
